Integrating systematic rebar design and planning with automated processing technology, the drawing involves systematic planning and creating bending diagrams for rebars such as column ties, column reinforcements and wall corner rebars based on the original structural design. Each column is tailored with precise rebar dimensions and specifications, with every bend path, length and angle pre-planned. Using rebar processing diagrams created according to the reinforcement plans for each project, factories can directly process the files, ensuring precise and seamless rebar bending and fabrication.
On-site, rebar workers only need to perform simple assembly and installation, achieving a final product with the quality and aesthetics of a fine artwork.

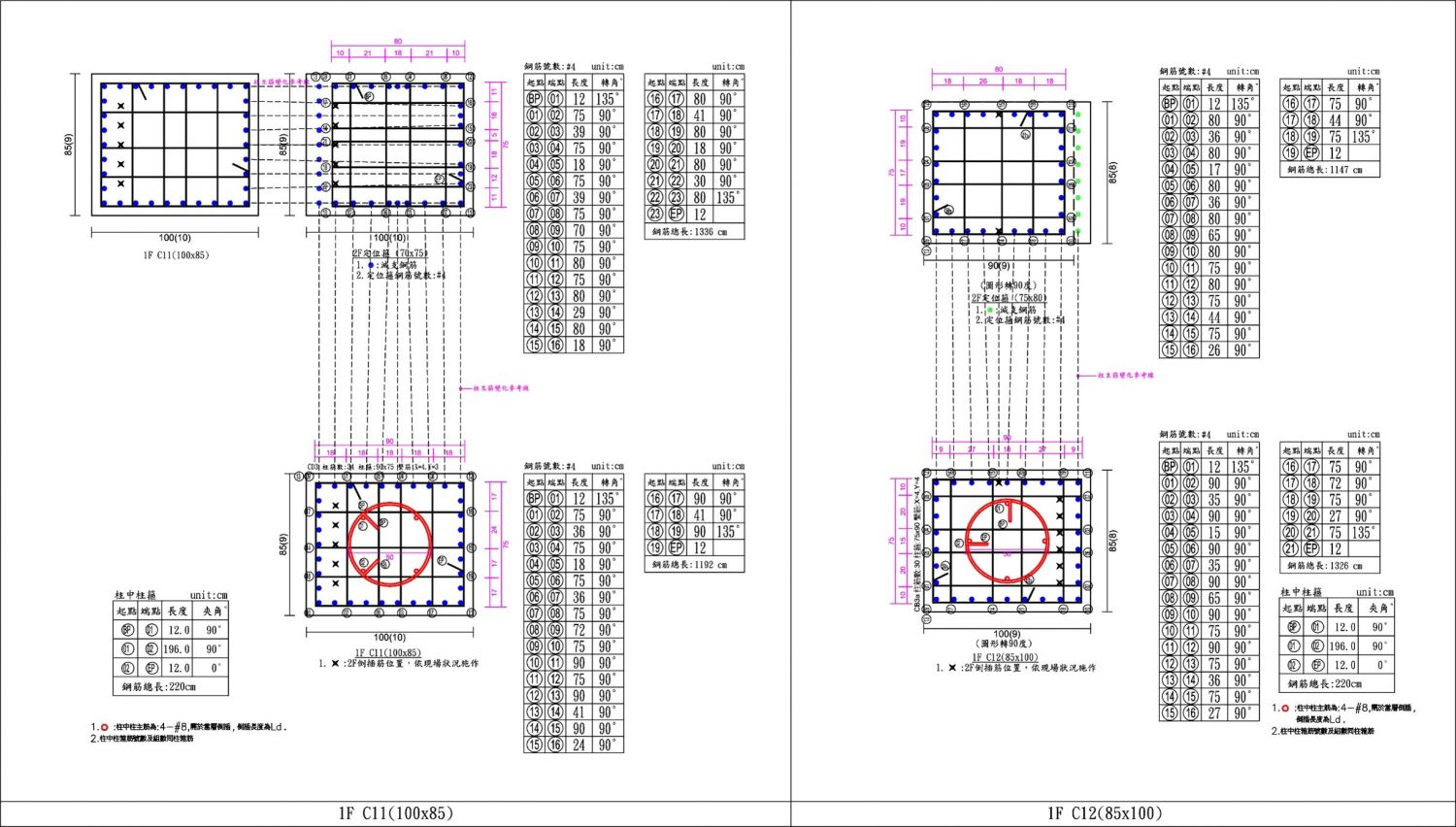

Alfa Safe Dual-Core Column Rebar Manufacturing and Processing Diagrams


Alfa Safe Dual-Core Column Rebar Manufacturing and Processing Diagrams
